Spray Nozzles — Spray Patterns
Hollow cone, full cone, flat fan and spiral anti-clogging nozzles for controlled fluid distribution.
Range overview
Specification and supply scope
Spray pattern is the first specification decision: it determines coverage, impact and droplet size. The range covers hollow cone, full cone, flat fan and spiral anti-clogging designs in stainless steel, brass, PTFE and carbide inserts. Flow rates and spray angles are verified against the published performance curve for each series.
- Product types
- 4
- Documents
- 6
- Supply mode
- Made to order
Stock on request
Selection note: ISO 9001 manufacturing, 316L / brass / PTFE, 1–50 bar service. Final dimensions and materials are confirmed on the order acknowledgement and, where required, the certified drawing.
Type 01 · ISO 9001 manufacturing
Hollow Cone Nozzle
Ring-shaped spray pattern for cooling, washing and gas scrubbing.
Typical applications
- Gas cooling
- Scrubbing towers
- Washing
- Dust suppression
Hollow cone nozzles produce a ring-shaped spray with fine droplets and a relatively low impact. The pattern is well suited to gas cooling, scrubbing, washing and applications where uniform coverage of a circular area is required.
- Ring-shaped spray pattern
- Fine droplets with low impact
- 1/8–1 in connections
- 316SS, brass and PTFE options
- Standards
- ISO 9001 manufacturing · 316L stainless · 1–40 bar service
- Materials
- 316L stainless steel · Brass · PTFE
Specification
| Connection | 1/8–1 in NPT/BSP |
|---|---|
| Orifice | 0.8–4.0 mm |
| Operating pressure | 1–40 bar |
| Flow range | 0.1–20 L/min |
| Spray angle | 60°–120° |
| Materials | 316SS, brass, PTFE |
Ordering range
| Series | Orifice | Pressure | Material | Part number |
|---|---|---|---|---|
| HCN-S | 0.8 mm | 1–40 bar | 316SS | BGI-HCN-S-08-316 |
| HCN-M | 1.2 mm | 1–40 bar | 316SS | BGI-HCN-M-12-316 |
| HCN-M | 2.0 mm | 1–25 bar | Brass | BGI-HCN-M-20-BR |
| HCN-L | 3.0 mm | 1–40 bar | 316SS | BGI-HCN-L-30-316 |
| HCN-L | 4.0 mm | 1–10 bar | PTFE | BGI-HCN-L-40-PTFE |
Type 02 · ISO 9001 manufacturing

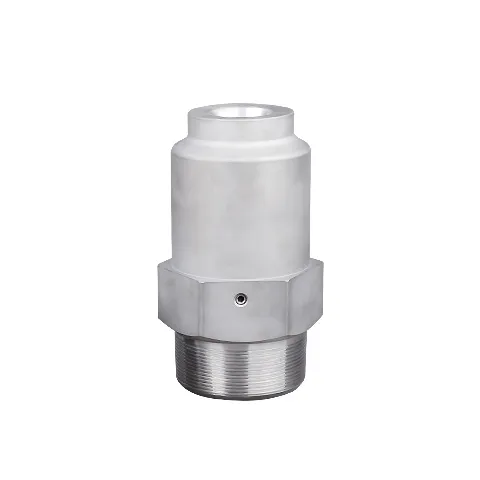

Full Cone Nozzle
Solid-cone spray for uniform coverage and higher impact.
Typical applications
- Tank washing
- Cooling
- Dust control
- Process injection
Full cone nozzles fill the entire cone with spray, providing uniform coverage and higher impact than hollow cone designs. They are used for tank washing, cooling, dust control and process injection where complete area coverage matters.
- Solid-cone spray pattern
- Uniform coverage with higher impact
- Large free passage for clog resistance
- Carbide inserts for abrasive duty
- Standards
- ISO 9001 manufacturing · 316L stainless · 2–50 bar service
- Materials
- 316L stainless steel · Carbide insert
Specification
| Connection | 1/8–1 in NPT/BSP |
|---|---|
| Orifice | 1.0–6.0 mm |
| Operating pressure | 2–50 bar |
| Flow range | 0.2–40 L/min |
| Spray angle | 60°–120° |
| Materials | 316SS, carbide insert |
Ordering range
| Series | Orifice | Pressure | Material | Part number |
|---|---|---|---|---|
| FCN-6 | 1.0 mm | 2–50 bar | 316SS | BGI-FCN-06-316 |
| FCN-8 | 1.5 mm | 2–50 bar | 316SS | BGI-FCN-08-316 |
| FCN-10 | 2.5 mm | 2–50 bar | 316SS/carbide | BGI-FCN-10-CARB |
| FCN-12 | 4.0 mm | 2–40 bar | 316SS/carbide | BGI-FCN-12-CARB |
| FCN-16 | 6.0 mm | 2–30 bar | 316SS/carbide | BGI-FCN-16-CARB |
Type 03 · ISO 9001 manufacturing
Flat Fan Nozzle
Fan-shaped spray for linear coverage, coating and washing.
Typical applications
- Coating and painting
- Conveyor washing
- Rinsing
- Cooling strips
Flat fan nozzles produce a narrow, fan-shaped pattern for linear coverage. They are used for coating, rinsing, conveyor washing and applications where a defined stripe of spray is required. Spray angles range from 25° to 110°.
- Fan-shaped pattern for linear coverage
- 25°–110° spray angles
- Uniform distribution across the fan
- Ceramic orifice options for wear resistance
- Standards
- ISO 9001 manufacturing · 316L stainless · 1.5–40 bar service
- Materials
- 316L stainless steel · Ceramic
Specification
| Connection | 1/8–3/4 in NPT/BSP |
|---|---|
| Orifice | 0.2–2.0 mm |
| Operating pressure | 1.5–40 bar |
| Flow range | 0.05–15 L/min |
| Spray angle | 25°–110° |
| Materials | 316SS, ceramic |
Ordering range
| Series | Orifice | Pressure | Material | Part number |
|---|---|---|---|---|
| FFN-25 | 0.2 mm | 1.5–40 bar | 316SS | BGI-FFN-25-316 |
| FFN-40 | 0.5 mm | 1.5–40 bar | 316SS | BGI-FFN-40-316 |
| FFN-60 | 0.8 mm | 1.5–40 bar | 316SS | BGI-FFN-60-316 |
| FFN-80 | 1.2 mm | 1.5–25 bar | Ceramic | BGI-FFN-80-CER |
| FFN-110 | 2.0 mm | 1.5–25 bar | Ceramic | BGI-FFN-110-CER |
Type 04 · ISO 9001 manufacturing
Spiral Anti-Clogging Nozzle
Open spiral design that resists clogging in dirty or fibrous service.
Typical applications
- Wastewater
- Slurry and pulp
- Dirty water cooling
- Fibrous process streams
Spiral anti-clogging nozzles use an open spiral channel rather than a small orifice, allowing particles and fibres to pass without blocking the spray. They are used in dirty water, slurry, pulp and wastewater applications.
- Open spiral flow path resists clogging
- Large free passage
- Uniform full-cone coverage
- Hardened insert available for abrasive slurries
- Standards
- ISO 9001 manufacturing · 316L stainless · 2–35 bar service
- Materials
- 316L stainless steel · Hardened alloy insert
Specification
| Connection | 1/4–1 in NPT/BSP |
|---|---|
| Flow passage | 0.8–3.0 mm equivalent |
| Operating pressure | 2–35 bar |
| Flow range | 0.5–30 L/min |
| Spray angle | 60°–120° |
| Materials | 316SS, hardened alloy |
Ordering range
| Series | Orifice | Pressure | Material | Part number |
|---|---|---|---|---|
| SAN-8 | 0.8 mm | 2–35 bar | 316SS | BGI-SAN-08-316 |
| SAN-10 | 1.2 mm | 2–35 bar | 316SS | BGI-SAN-10-316 |
| SAN-12 | 2.0 mm | 2–35 bar | 316SS | BGI-SAN-12-316 |
| SAN-16 | 3.0 mm | 2–30 bar | 316SS/hardened | BGI-SAN-16-HARD |
Documentation
Range documents
Datasheets, overviews and general arrangement drawings for this range. Controlled copies are issued with each order.
| Document | Type | Scope | Revision | Date | Action |
|---|---|---|---|---|---|
| Spray Nozzles — Spray Patterns — Product Overview4 pages · PDF | Product overview | Nozzles · Spray Nozzles — Spray Patterns | Rev. 04 | 15 Sept 2026 | Download |
| Spray Nozzles — Spray Patterns — General Arrangement Drawing1 page · PDF | Drawing | Nozzles · Spray Nozzles — Spray Patterns | Rev. 03 | 15 Sept 2026 | Download |
| Hollow Cone Nozzle Datasheet2 pages · PDF | Datasheet | Nozzles · Spray Nozzles — Patterns · Hollow Cone Nozzle | Rev. 04 | 15 Sept 2026 | Download |
| Full Cone Nozzle Datasheet2 pages · PDF | Datasheet | Nozzles · Spray Nozzles — Patterns · Full Cone Nozzle | Rev. 04 | 15 Sept 2026 | Download |
| Flat Fan Nozzle Datasheet2 pages · PDF | Datasheet | Nozzles · Spray Nozzles — Patterns · Flat Fan Nozzle | Rev. 04 | 15 Sept 2026 | Download |
| Spiral Anti-Clogging Nozzle Datasheet2 pages · PDF | Datasheet | Nozzles · Spray Nozzles — Patterns · Spiral Anti-Clogging Nozzle | Rev. 04 | 15 Sept 2026 | Download |
Verification
Documented at every release
Material, dimensional and pressure records are matched to the order before shipment. Certificates and test reports are available on request.
Quality and verificationMaterial traceability
Heat-number matched mill certificates and EN 10204 3.1 on request.
Dimensional inspection
Bore, face, bolt circle and envelope checked to drawing.
Pressure testing
Hydrostatic or pneumatic testing to the order specification.
Documented release
Inspection record, packing list and certificate package.
Related ranges
Continue through the catalog
Adjacent product lines are often specified together. Review the related range or open the full product index.
Request a quotation
Send the duty, we will confirm the configuration.
Provide size, pressure class, material, connection and quantity. For critical service, include the project specification, drawing or NDE requirements.
