Product family
Nozzles
Vessel penetrations and precision spray nozzles for process and utility duty.
Range overview
Nozzles for process, utility and critical service.
Two distinct nozzle lines: ASME vessel connections for pressure equipment, and engineered spray nozzles for cooling, washing, coating and process injection. Each line is specified against its own standards and application criteria.
- Primary standards
- ASME Section VIII Div. 1 · ISO 9001 manufacturing
- Supply scope
- Standard and made-to-order configurations; project documentation on request.
Range pages
Select the range
Each range page lists the product types, specifications, ordering data and documents for that group.
Range
Vessel Nozzles
ASME pressure-vessel penetrations, manways and instrument connections.
View range
Range
Spray Nozzles — Patterns
Hollow cone, full cone, flat fan and spiral anti-clogging spray patterns.
View range
Range

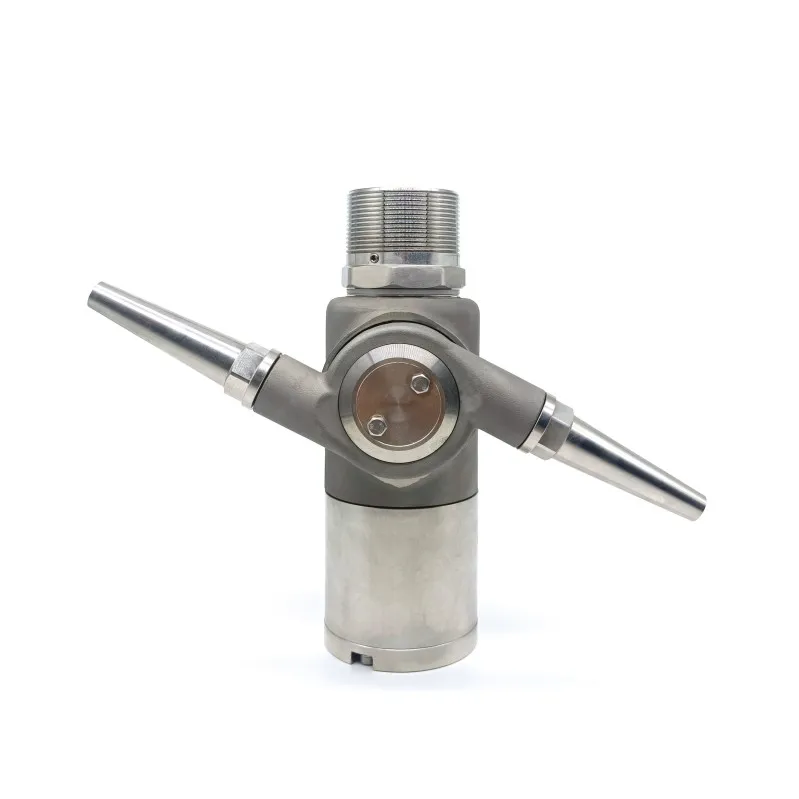

Spray Nozzles — Applications
Fine mist, tank cleaning and air atomizing nozzles for process duty.
View rangeProduct types
A selection from this family
15 product types are listed in this family. Open a type for specifications, materials, ordering data and documents.
Vessel Nozzles
Flush Nozzle
Flanged vessel connection with a bore flush to the internal shell surface.
View specifications
Vessel Nozzles
Manway Nozzle
Large-diameter access opening with cover, davit and sealing arrangement.
View specifications
Vessel Nozzles
Pressure Vessel Nozzle
General-purpose flanged or welded penetration for pressure-vessel service.
View specifications
Vessel Nozzles
Hillside Nozzle
Angled penetration for connections that must follow a shell contour or flow path.
View specifications
Product media
Vessel connections and spray performance.
The nozzle film covers vessel penetration fabrication and the spray lines in operation, including pattern, flow and application checks used during selection.
- Vessel nozzle fabrication and weld preparation
- Spray pattern and flow demonstration
- Application notes for cooling, washing and injection
Films and high-resolution photography are shared directly with customers and specifiers.
How to specify
Three inputs are enough to start.
A complete RFQ shortens the review cycle. If a drawing or existing part number is available, include it with the enquiry.
01
Duty and envelope
Size, pressure class, temperature, media and available space. For movement or flow duty, include the calculated range.
02
Material and connection
Pipe or vessel material, flange facing, weld or thread detail, and any sour-service or NACE requirement.
03
Documentation and test
Material certificates, NDE, pressure test, dimensional report and any project specification or data sheet.
Next step
Need help selecting a nozzles configuration?
Send the duty, drawing or existing part number. Engineering and sales will confirm the range, documentation and delivery route.
