Nozzles
Spray Nozzles — Applications
Fine mist, tank cleaning and air atomizing nozzles for cooling, washing and process injection.
Range overview
Specification and supply scope
Application-specific nozzles are selected against the duty rather than the pattern alone. Fine mist nozzles produce small droplets for cooling and humidification. Tank cleaning nozzles deliver controlled coverage of vessel interiors. Air atomizing nozzles combine liquid and compressed air for fine atomization of viscous or low-pressure fluids.
- Product types
- 3
- Documents
- 5
- Supply mode
- Made to order
Stock on request
Selection note: 316L / carbide, 5–60 bar cleaning duty, Compressed-air atomization. Final dimensions and materials are confirmed on the order acknowledgement and, where required, the certified drawing.
Type 01 · ISO 9001 manufacturing

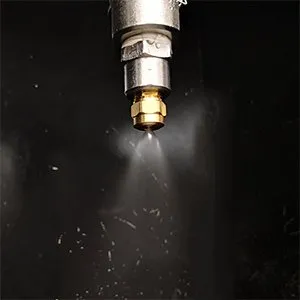

Fine Mist Nozzle
Small-droplet nozzle for cooling, humidification and odour control.
Typical applications
- Evaporative cooling
- Humidification
- Odour control
- Dust suppression
Fine mist nozzles produce droplets in the 20–100 micron range using a small orifice and high pressure. They are used for evaporative cooling, humidification, dust suppression and odour control where rapid evaporation is required.
- 20–100 micron droplet range
- 316SS and titanium wetted parts
- Low flow rates from 0.02 L/min
- Anti-drip and filter options
- Standards
- ISO 9001 manufacturing · 316L / titanium · 3–25 bar service
- Materials
- 316L stainless steel · Titanium
Specification
| Connection | 1/8–1/4 in NPT/BSP |
|---|---|
| Orifice | 0.15–0.60 mm |
| Operating pressure | 3–25 bar |
| Flow range | 0.02–1.5 L/min |
| Droplet size | 20–100 µm |
| Materials | 316SS, titanium |
Ordering range
| Series | Orifice | Pressure | Material | Part number |
|---|---|---|---|---|
| FMN-M1 | 0.15 mm | 5–25 bar | 316SS | BGI-FMN-M1-316 |
| FMN-M2 | 0.25 mm | 5–25 bar | 316SS | BGI-FMN-M2-316 |
| FMN-M3 | 0.40 mm | 3–20 bar | 316SS | BGI-FMN-M3-316 |
| FMN-M4 | 0.60 mm | 3–20 bar | Titanium | BGI-FMN-M4-TI |
Type 02 · ISO 9001 manufacturing
Tank Cleaning Nozzle
Rotating or fixed spray head for vessel and tank interior cleaning.
Typical applications
- Tank and vessel cleaning
- CIP systems
- Food and beverage
- Chemical processing
Tank cleaning nozzles deliver high-impact spray coverage to vessel interiors. Fixed heads suit small tanks and simple rinse duty; rotating and oscillating heads provide 360° coverage for larger vessels. Flow, pressure and cycle time are matched to the cleaning procedure.
- 360° coverage with rotating head
- High-impact jet for residue removal
- 316L and carbide construction
- Fixed, rotating and oscillating options
- Standards
- ISO 9001 manufacturing · 316L / carbide · 5–60 bar cleaning duty
- Materials
- 316L stainless steel · Carbide inserts
Specification
| Connection | 1/2–2 in NPT/BSP |
|---|---|
| Flow range | 5–150 L/min |
| Operating pressure | 5–60 bar |
| Coverage | 360° rotating or fixed |
| Rotation speed | 0–60 rpm |
| Materials | 316L, carbide |
Ordering range
| Series | Flow | Pressure | Material | Part number |
|---|---|---|---|---|
| TCN-Fixed | 5–30 L/min | 5–40 bar | 316L | BGI-TCN-FIX-316 |
| TCN-Rotating | 20–60 L/min | 5–60 bar | 316L | BGI-TCN-ROT-316 |
| TCN-Rotating | 40–100 L/min | 5–60 bar | 316L/carbide | BGI-TCN-ROT-CARB |
| TCN-Oscillating | 30–150 L/min | 5–50 bar | 316L | BGI-TCN-OSC-316 |
Type 03 · ISO 9001 manufacturing

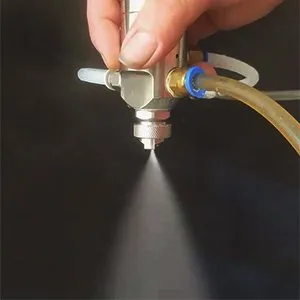

Air Atomizing Nozzle
Compressed-air-assisted nozzle for fine atomization of viscous fluids.
Typical applications
- Viscous fluid spraying
- Coatings and adhesives
- Lubrication
- Process injection
Air atomizing nozzles combine liquid and compressed air to produce fine droplets at low liquid pressure. They are used for viscous fluids, coatings, lubrication and process injection where a conventional hydraulic nozzle cannot achieve the required atomization.
- External or internal mixing
- Fine atomization at low liquid pressure
- Adjustable air and liquid flow
- 316SS and carbide wear parts
- Standards
- ISO 9001 manufacturing · 316L / carbide · Liquid 2–10 bar · Air 4–8 bar
- Materials
- 316L stainless steel · Carbide
Specification
| Connection | 1/4–1 in NPT/BSP |
|---|---|
| Liquid flow | 0.5–20 L/min |
| Liquid pressure | 2–10 bar |
| Air pressure | 4–8 bar |
| Mixing | External or internal |
| Materials | 316SS, carbide |
Ordering range
| Series | Flow | Liquid pressure | Material | Part number |
|---|---|---|---|---|
| AAE-External | 0.5–5 L/min | 2–10 bar | 316SS | BGI-AAE-EXT-316 |
| AAE-Internal | 1–10 L/min | 2–10 bar | 316SS | BGI-AAE-INT-316 |
| AAE-Internal | 5–20 L/min | 2–10 bar | 316SS/carbide | BGI-AAE-INT-CARB |
| AAE-External | 0.5–3 L/min | 2–10 bar | 316SS/carbide | BGI-AAE-EXT-CARB |
Documentation
Range documents
Datasheets, overviews and general arrangement drawings for this range. Controlled copies are issued with each order.
| Document | Type | Scope | Revision | Date | Action |
|---|---|---|---|---|---|
| Spray Nozzles — Applications — Product Overview4 pages · PDF | Product overview | Nozzles · Spray Nozzles — Applications | Rev. 04 | 15 Sept 2026 | Download |
| Spray Nozzles — Applications — General Arrangement Drawing1 page · PDF | Drawing | Nozzles · Spray Nozzles — Applications | Rev. 03 | 15 Sept 2026 | Download |
| Fine Mist Nozzle Datasheet2 pages · PDF | Datasheet | Nozzles · Spray Nozzles — Applications · Fine Mist Nozzle | Rev. 04 | 15 Sept 2026 | Download |
| Tank Cleaning Nozzle Datasheet2 pages · PDF | Datasheet | Nozzles · Spray Nozzles — Applications · Tank Cleaning Nozzle | Rev. 04 | 15 Sept 2026 | Download |
| Air Atomizing Nozzle Datasheet2 pages · PDF | Datasheet | Nozzles · Spray Nozzles — Applications · Air Atomizing Nozzle | Rev. 04 | 15 Sept 2026 | Download |
Verification
Documented at every release
Material, dimensional and pressure records are matched to the order before shipment. Certificates and test reports are available on request.
Quality and verificationMaterial traceability
Heat-number matched mill certificates and EN 10204 3.1 on request.
Dimensional inspection
Bore, face, bolt circle and envelope checked to drawing.
Pressure testing
Hydrostatic or pneumatic testing to the order specification.
Documented release
Inspection record, packing list and certificate package.
